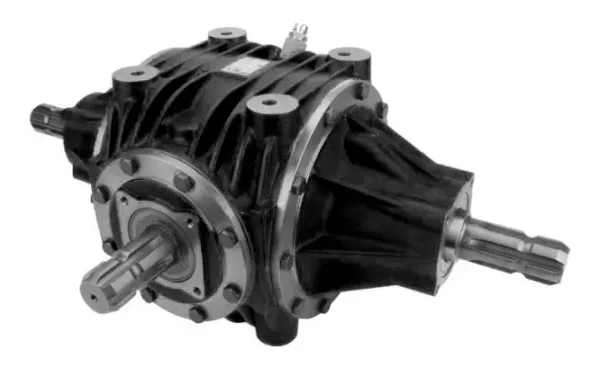

Flail Mower Gearbox – Replacement of Comer Code T-301B

Specifications of Flail Mower Gearbox T-301B

Product  Description	Flail Mower Gearbox – Replacement of Comer Gearbox T-301B
Product details	Contact us for power at a different RPM The gearbox is delivered without oil and must be filled before first use. First, the oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Application range	Various (agricultural) applications Mowers Rotary tillers
Model	T-301B
Max. input rotation speed	1000 r/min
Consists of	Gearbox Without oil
Max. input power	132 kW
Max. output torque	76.4 daNm
Connection 1 type	Splined
XConnection 1 outside diameter	1-3/4 Inch
Connection 1 number of splines	6
Connection 2 type	Splined
YConnection 2 outside diameter	1-3/8 Inch
Connection 2 number of splines	6
Connection 3 type	Splined
ZConnection 3 outside diameter	1-3/8 Inch
Connection 3 number of splines	6
Contains oil	No
Max. oil capacity	4.4 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Cast iron GGG40
Original number equivalent	9.301.041.00
Weight	61.5 kg
Ratio Increasing	1: 1.60

Features of Flail Mower Gearbox T-301B

The Flail Mower Gearbox T-301B is a high-performance gearbox designed for use with flail mowers in agricultural, landscaping, and industrial applications. This gearbox is engineered for efficiency, durability, and precision, ensuring optimal performance in demanding mowing environments. Below are the key features of the T-301B gearbox:

High Gear Ratio for Enhanced Performance

The T-301B gearbox features a high gear ratio that provides efficient torque transfer and optimized blade rotation. This gear ratio is designed to maximize cutting power, making it suitable for tough vegetation, including thick grass, brush, and small trees. The gearbox ensures consistent blade speed while maintaining low energy consumption, improving overall efficiency.

• Optimized gear ratio for enhanced torque and blade performance.
• Ideal for heavy-duty cutting tasks with demanding vegetation.

Durable and Heavy-Duty Construction

The T-301B gearbox is built with heavy-duty materials to ensure durability and long-term performance under challenging conditions. Constructed with high-strength steel and reinforced components, this gearbox is designed to withstand the stresses of continuous operation in harsh environments such as rough terrain or dense brush. The robust housing protects internal components from damage, contributing to the gearbox’s longevity.

• Heavy-duty construction for reliable performance in tough environments.
• Built to withstand continuous use and resist wear and tear.

Precision Engineering for Smooth Operation

The T-301B gearbox is engineered with precision gears that ensure smooth and quiet operation. The internal components are meticulously designed and machined for a precise fit, reducing vibrations and noise during operation. This feature enhances the comfort and safety of the operator while maintaining efficient performance in both light and heavy mowing tasks.

• Precision gears ensure smooth, quiet operation.
• Reduces vibrations, enhancing operator comfort and safety.

Efficient Power Transfer

The T-301B gearbox is designed to efficiently transfer power from the PTO shaft to the flail mower blades. It provides excellent power conversion with minimal loss, ensuring that the mower blades operate at the ideal speed for cutting performance. This efficient power transfer reduces strain on the tractor engine, leading to improved fuel efficiency and lower operating costs.

• Efficient power transfer minimizes energy loss.
• Reduces strain on the tractor engine, leading to better fuel efficiency.

Versatile Application

The T-301B gearbox is versatile and can be used with a wide range of flail mowers and PTO-driven equipment. It is designed to handle a variety of cutting applications, from grass cutting and field maintenance to brush clearing and forestry tasks. Whether used in small-scale operations or large commercial tasks, the T-301B gearbox adapts to different mowing conditions and ensures effective performance.

• Versatile for various applications like grass cutting, brush clearing, and forestry.
• Suitable for both agricultural and landscaping purposes.

The Flail Mower Gearbox T-301B is a robust, high-performance gearbox designed for heavy-duty mowing tasks. Its high gear ratio, durable construction, and efficient power transfer make it ideal for cutting thick grass, brush, and small trees. Whether used for agricultural or landscaping purposes, the T-301B ensures smooth operation, precision cutting, and long-lasting performance with minimal maintenance requirements.

Where Can the Flail Mower Gearbox Be Used?

The Flail Mower Gearbox is a versatile and essential component used across a wide range of agricultural, landscaping, and industrial applications. Its ability to efficiently drive mower blades with high torque and precision makes it ideal for environments that require robust, consistent performance. Below are the key areas where the Flail Mower Gearbox can be effectively used:

Agricultural Fields

Flail mowers equipped with gearboxes are widely used in agriculture for field maintenance. They are ideal for mowing grass, weeds, and vegetation in large fields. The gearboxes ensure efficient power transfer, allowing tractors to tackle overgrown areas quickly and effectively. These mowers are particularly useful for maintaining pastures, hay fields, and crop land, as they can handle thick vegetation and clear fields for planting or grazing.

• Applications: Grass cutting, pasture maintenance, weed control.
• Benefits: Efficient mowing in large agricultural areas, improving land management.

Roadside and Highway Maintenance

Flail mowers are extensively used for roadside maintenance and highway clearing, where there is a need to mow grass, bushes, and small trees along roads. The Flail Mower Gearbox provides the power needed to cut through tough brush and overgrown vegetation that often appears along highways, preventing visibility issues and ensuring safe driving conditions. The durability of the gearbox makes it well-suited for continuous, high-demand tasks on roadways.

• Applications: Roadside mowing, vegetation control along highways, and urban areas.
• Benefits: Helps maintain clear roadsides and enhances safety by controlling overgrowth.

Landscaping and Urban Maintenance

In landscaping and urban environments, the Flail Mower Gearbox plays a crucial role in maintaining parks, golf courses, and public green spaces. These gearboxes help manage grass, shrubs, and small trees, ensuring consistent and professional landscaping results. They are particularly beneficial for municipal maintenance and commercial landscaping where aesthetics and functionality are both essential.

• Applications: Lawn maintenance, park and green space mowing, golf course upkeep.
• Benefits: Ensures neat, tidy, and well-maintained public spaces with minimal downtime.

Forestry and Brush Clearing

In forestry applications, the Flail Mower Gearbox is used to clear dense brush, undergrowth, and small trees. It is ideal for clearing firebreaks, logging roads, and managing forest floor vegetation. The high torque and durability of the gearbox make it well-suited for clearing rough, overgrown terrain in forests or woodland areas. This application is critical for fire prevention and creating accessible areas for forestry operations.

• Applications: Brush clearing, firebreak maintenance, forest management.
• Benefits: Efficient clearing of dense vegetation, preventing fire hazards, and enabling easier access to forest areas.

Municipal and Industrial Applications

In industrial and municipal settings, flail mowers equipped with the gearbox are often used for clearing land, managing industrial sites, and maintaining large properties or estates. The versatility of the Flail Mower Gearbox makes it suitable for areas where vegetation must be controlled to prevent it from obstructing machinery, operations, or infrastructure. These gearboxes ensure efficient and consistent operation, even when used in urban environments, factory premises, or warehouses.

• Applications: Land clearance for industrial sites, estate maintenance, waste management areas.
• Benefits: Enables efficient land management and vegetation control in industrial or large-scale municipal properties.

The Flail Mower Gearbox is an essential component for a variety of agricultural, landscaping, and industrial applications. Its versatility allows it to be used in fields, roadsides, forests, municipal properties, and sports turf management, providing effective vegetation control in challenging environments. Whether for maintenance or land clearing, the gearbox ensures efficiency, durability, and consistent performance in demanding tasks.
