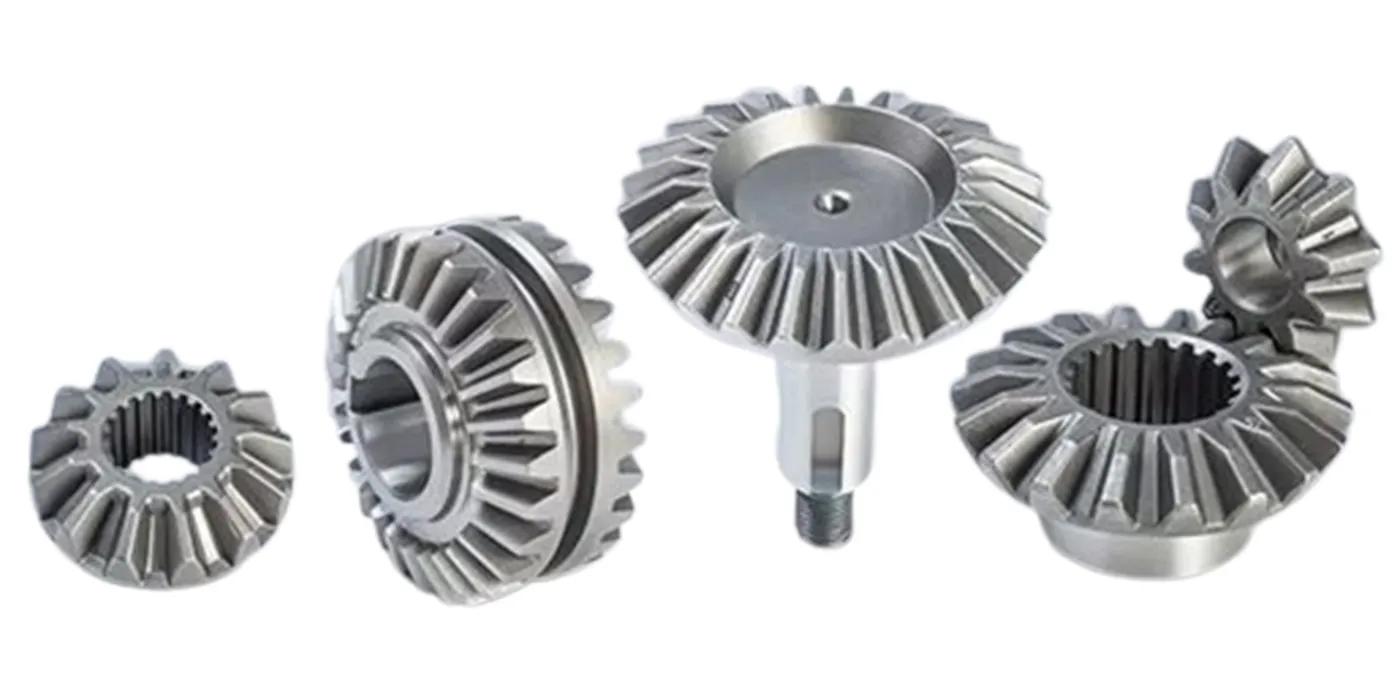

Bevel Gear Set: FMP’s High-Quality Solutions for Every Need
Bevel gear sets are essential components in motion transmission systems, used to transfer power between intersecting axes, often at a 90-degree angle. Due to their versatility, they find applications in various sectors, from automotive to manufacturing industries. At FMP, we take pride in offering a comprehensive range of bevel gear sets, entirely produced in Italy, that combine superior quality with customization options to meet every requirement.
Types of Bevel Gear Sets Produced by FMP
FMP provides a wide variety of bevel gear sets, designed to meet diverse technical needs:
- Standard bevel gear sets: Available from module 1 to module 5, with straight or helical teeth in C45 E steel. These bevel gear sets comply with UNI 6588 (type A) standards and include pre-drilled holes to facilitate processing. They are ideal for applications requiring transmission ratios of 1:1 or up to 1:4.
- Customized bevel gear sets: For clients with specific needs, we offer the option to design bevel gear sets with tailored teeth, materials, and surface treatments, adapted to the most unique requirements.
Whether for an automotive differential or a complex industrial system, our bevel gear sets ensure reliable and long-lasting performance.
Some product specifications
Ratio 3:1
| Module | Number of teeth | da (mm) |
d (mm) |
ND (mm) |
NL (mm) |
L1 (mm) |
L (mm) |
S1) (mm) | b (mm) |
BH7 (mm) | E (mm) |
Torque* (Nm) | Weight g/Pair |
| 0,6 | 20 | 19 | 18 | 15 | 7 | 17, | 17,7 | 8,2 | 10 | 6 | 35 | 2 | 175 |
| 60 | 54, | 54 | 45 | 8 | 16 | 1 | 16 | 10 | 10 | 2 | 6,3 | 175 | |
| 1 | 16 | 26,1 | 2 | 20 | 8,3 | 2 | 22,6 | 9 | 14 | 8 | 45 | 5 | 380 |
| 48 | 72,5 | 72 | 50 | 8 | 1 | 21,3 | 16,8 | 14 | 1 | 28 | 17, | 380 | |
| 1,3 | 11 | 2 | 22 | 1 | 6 | 17 | 17, | 7,5 | 11 | 8 | 4 | 7,7 | 320 |
| 33 | 6 | 60 | 4 | 8 | 1 | 2 | 16,9 | 11 | 12 | 27 | 23 | 320 | |
| 1,5 | 10 | 26,0 | 22 | 17 | 8 | 19 | 20,1 | 9,6 | 11 | 8 | 42 | 9,1 | 380 |
| 30 | 66,6 | 66 | 40 | 8 | 17 | 21,3 | 17,8 | 11 | 12 | 28 | 27,3 | 380 | |
| 22,291 | 9 | 36,5 | 32 | 22 | 11 | 24 | 25,8 | 15,4 | 13 | 8 | 60,52 | 28 | 638 |
| 27 | 96,0 | 96 | 48 | 19 | 25 | 29,5 | 25,5 | 13 | 20 | 40 | 84 | 638 | |
| 25,736 | 9 | 42,0 | 37,5 | 27 | 12 | 26,5 | 28,64 | 15,1 | 15 | 12 | 69,84 | 46 | 1100 |
| 27 | 113,0 | 112,5 | 54 | 24 | 32 | 38,41 | 33,9 | 15 | 25 | 50 | 138 | 1100 | |
| 3,5 | 9 | 59,0 | 52,5 | 40 | 12 | 33 | 36,2 | 18,9 | 22 | 16 | 92,64 | 132 | 2700 |
| 27 | 158,5 | 157,5 | 70 | 29 | 40 | 47,9 | 41,2 | 22 | 30 | 65 | 396 | 2700 |
Ratio 4:1
| Module | Number of teeth | da (mm) |
d (mm) |
ND (mm) |
NL (mm) |
L1 (mm) |
L (mm) |
S1) (mm) | b (mm) |
BH7 (mm) | E (mm) |
Torque* (Nm) | Weight g/Pair |
| 1 | 16 | 25,9 | 24 | 20 | 7,3 | 21 | 21,8 | 8,2 | 14 | 8 | 56 | 7,8 | 842 |
| 64 | 96,5 | 96 | 70 | 8 | 19 | 22,4 | 19 | 14 | 20 | 30 | 31,2 | ||
| 1,5 | 11 | 27,8 | 24,2 | 20 | 8 | 19 | 20,7 | 9 | 12 | 8 | 57 | 11,3 | 775 |
| 44 | 97,3 | 96,8 | 70 | 8 | 17 | 21,9 | 19 | 12 | 20 | 30 | 45,2 |
Why Choose FMP’s Bevel Gear Sets?
FMP’s bevel gear sets stand out for several advantages:
- High-quality materials: We use C45 E steel, known for its strength and durability, to ensure robust and reliable products.
- Italian production: All our bevel gear sets are manufactured in our facilities near Milan, where we apply strict quality controls to meet the highest standards.
- Technical precision: The teeth, compliant with UNI 6588 standards, ensure smooth and quiet motion transmission, with an optimal ratio between pinion and crown.
These features make our bevel gear sets an ideal choice for those seeking excellent components, whether in Venice for marine applications or in Bologna for the automotive sector.
Customization and Support for Models Not in the Catalog
One of FMP’s strengths is our ability to meet specific customer needs. If you cannot find the bevel gear set model you need in our catalog, don’t worry—it may simply not have been uploaded to our site yet. We invite you to contact us via email at info@fmpcomponents.it to request the desired model.
