Idler Sprocket
If the product you need is not listed, go ahead and get a free quote!

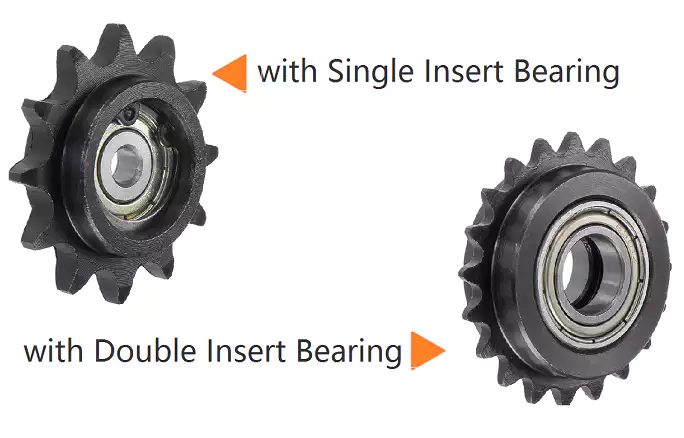

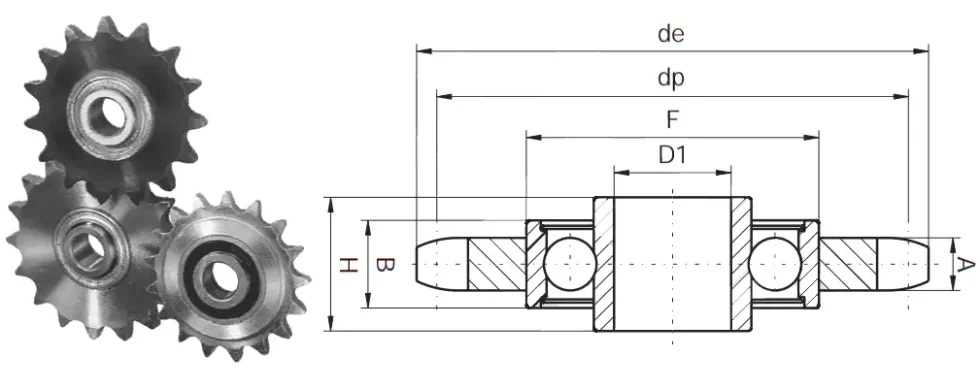

Idler Sprocket With Ball Bearing
| Z | Pitch | de | dp | A | D1 | F | B | H |
| 23 | 8×3 | 62.15 | 58.75 | 2.8 | 16 | 40 | 12 | 18.3 |
| 21 | 3/8”×7/32” | 68.0 | 63.90 | 5.3 | 16 | 40 | 12 | 18.3 |
| 18 | 1/2”×1/8” | 78.9 | 73.14 | 3 | 16 | 40 | 12 | 18.3 |
| 18 | 1/2”×3/16” | 78.9 | 73.13 | 4.5 | 16 | 40 | 12 | 18.3 |
| 16 | 1/2”×5/16” | 69.5 | 65.10 | 7.2 | 16 | 40 | 12 | 18.3 |
| 18 | 1/2”×5/16” | 77.8 | 73.14 | 7.2 | 16 | 40 | 12 | 18.3 |
| 14 | 5/8”×3/8” | 78.0 | 71.34 | 9.1 | 16 | 40 | 12 | 18.3 |
| 15 | 5/8”×3/8” | 83.0 | 76.36 | 9.1 | 16 | 40 | 12 | 18.3 |
| 17 | 5/8”×3/8” | 93.0 | 86.39 | 9.1 | 16 | 40 | 12 | 18.3 |
| 13 | 3/4”×7/16” | 87.5 | 79.59 | 11.1 | 16 | 40 | 12 | 18.3 |
| 15 | 3/4”×7/16” | 99.8 | 91.63 | 11.1 | 16 | 40 | 12 | 17.3 |
| 12 | 1”×17.02 | 109.0 | 98.14 | 16.2 | 20 | 47 | 14 | 17.7 |
| 13 | 1”1/4×3/4” | 147.8 | 132.65 | 18.5 | 25 | 52 | 15 | 21.0 |
Idler Sprockets for Sale
Idler Sprocket 13T 1″1/4*3/4″
Idler Sprocket 12T 1″ 17.02
Idler Sprocket 15T 3/4″ 7/16″
Idler Sprocket 13T 3/4″ 7/16″
Idler Sprocket 17T 5/8″ 3/8″
Idler Sprocket 15T 5/8″ 3/8″
Idler Sprocket 14T 1/2″ 5/16″
Idler Sprocket 16T 1/2″ 5/16″
Idler Sprocket 18T 1/2″ 3/16″
Idler Sprocket 18T 1/2″ 1/8″
Idler Sprocket 21T 3/8″ 7/32″
